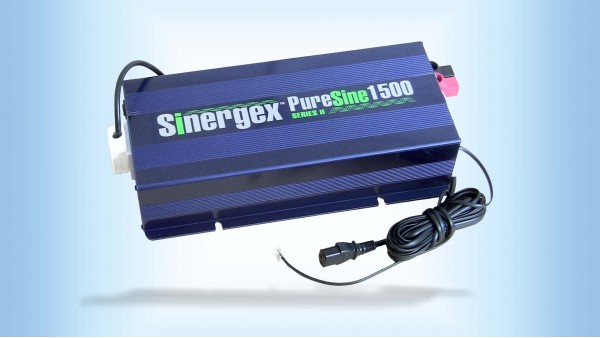

Sinergex Technologies PureSine 1500 (INV-SIN-1500)

Sinergex Technologies PureSine 1500 [Inverters INV-SIN-1500]

The PureSine 1500W power inverter series is a member of the most advanced line of mobile AC power systems available.

Features

  • Pure sine wave output (THD < 3%)
  • Output frequency¬50 / 60Hz switch selectable
  • Input & output fully isolation design
  • Low power “ Power Saving Mode“ to conserve energy
  • High efficiency 89~94%
  • Capable of driving highly reactive & capacitive loads at start moment.
  • Tri-Color indicators display input voltage & output load level
  • Loading controlled cooling fan
  • Advanced microprocessor
  • Protection
    • Input low voltage
    • Overload
    • Short circuit
    • Low battery alarm
    • Input over voltage
    • Over temperature

Applications

Power tools – circular saws, drills, grinders, sanders, buffers, weed and hedge trimmers, air compressors.
Office equipment – computers, printers, monitors, facsimile machines, scanner.
Household items – vacuum cleaners, fans, fluorescent and incandescent lights, shavers, sewing machines.
Kitchen appliances – coffee makers, blenders, ice markers, toasters.
Industrial equipment – metal halide lamp, high – pressure sodium lamp.
Home entertainment electronics – television, VCRs, video games, stereos, musical instruments, satellite equipment.

Specification

  • Continuous Output Power    1500W
  • Maximum Output Power (3Min.)    1725W
  • Surge Rating    3000W
  • Input voltage    12V
  • Output Voltage    220 / 230 / 240V    +/- 3%
  • Frequency (Switch Selectable)    50 / 60Hz +/- 0.05%
  • Output Waveform    Pure Sine Wave ( THD < 3% )
  • Efficiency (full load)    90%
  • No Load Current Draw    1.40A
  • Stand-By Current Draw    0.28A
  • Input Voltage Regulation    10.5-15 VDC
  • Input Level Indicator    Red / Orange / Green    LED
  • Load Level Indicator
  • Failure Indicator    Red LED
  • Protection
    • Overload, Short Circuit, Reverse Polarity (Fuse),
    • Over / Under Input Voltage, Over Temperature.
  • Remote Control Unit    CR-6 / CR-7 / CR-8
  • Safety    EN60950-1
  • EMC
    • EN55024: 1997    e-Mark
    • EN55022: 1997
    • EN61000-3-2: 1998
    • EN61000-3-3: 1995
  • Operating Temperature Range    0 - 40
  • Storage Temperature Range    -30 to 70
  • Cooling    Loading controlled cooling fan
  • Dimensions    415(L)*191(W)*88(H)mm / 16.34(L)*7.52(W)*3.46(H) Inch
  • Weight    4.8 kg / 10.56 Lbs.
